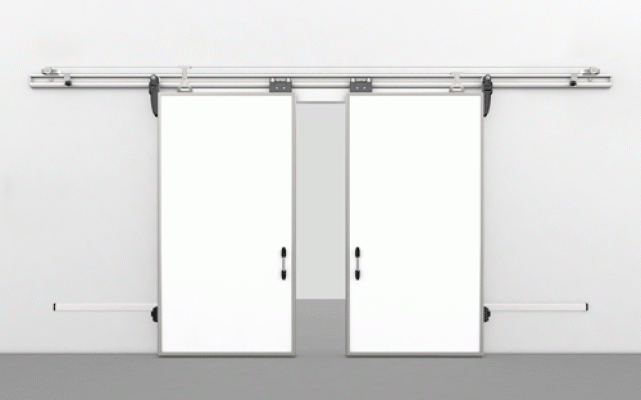

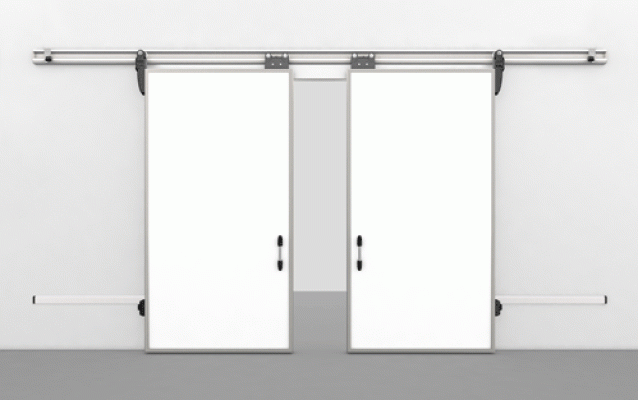

Industrial Sliding Door Double leaves

Max industrial sliding door double leaves is 4400 x 3800 mm, doors are composed of four main parts as following:

Door Leaf:

Leaves made up of two pre-painted hot dip-galvanized steel sheets thickness 0.50mm (Standard), thicker sheets available (on request), Standard sheets color RAL 9010.

Door Frame Specs

Frame is made up from extruded P.V.C profiles reinforced internally by steel and it is thermo–welded at (45^o)
For negative temperature, a heating cable 40w/m powered at 220v is inserted inside the frame covered by aluminum profile.

Threshold Type:

Four types of threshold are available depend on door application and temperature of the room.

S1 frame is only 3 parts without threshold connected to it for positive and negative temperature, heating cable will be inserted inside frame or a special rubber gasket profile.

S2 frame is only 3 parts and a 50mm pre-painted steel angle is connected to the frame at the bottom and recessed into the concrete floor, can be used for both positive and negative temperature.

S3 frame is only 3 parts, A metal angle tube 40 x 40 mm (50 x 50 mm) joined with another stainless steel on aluminum tube (20 x 40 mm) both are connected to the frame at the bottom and recessed into the concrete floor.

A heating cable 40w/m powered at 220v is inserted inside the upper stainless-steel tube which remains visible at the same floor level only for negative temperature.

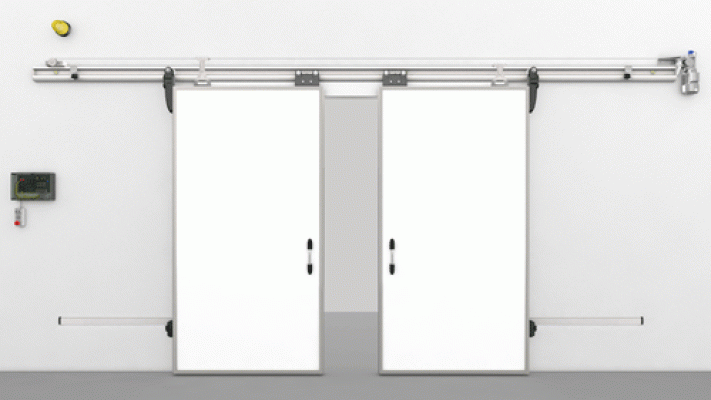

** Optional: Automatic Sliding system

Industrial Sliding Double leaves models:

SD-100TN	SD-100BT	SD-120BT	SD-120BT	SD-150BT
Leaf Thickness	100 mm	100 mm	100 mm	120 mm	150 mm
Temperature	+5	+2	-18	-30	-40
Threshold	S1/S2	S3	S3	S3	S3

Industrial Sliding Double leaves:

	SD-100TNA	SD-100BTA	SD-120BTA	SI-120BTA	SI-150BTA
Leaf Thickness	100 mm	100 mm	100 mm	120 mm	150 mm
Temperature	+5	+2	-18	-30	-40
Threshold	S1/S2	S3	S3	S3	S3
Automatic movement	yes	yes	yes	yes	yes
