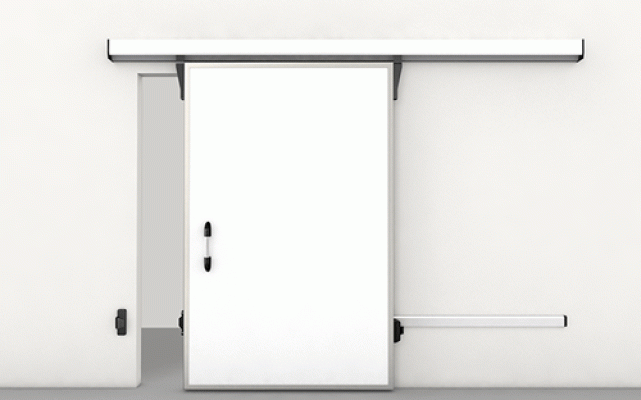

Light Sliding Door

 Max Dim 1500 x 2400mm frameless doors used for Positive Temperature only composed of three main parts as following:

1. Door Leaf:

• Leaf made up of two pre-painted hot dip-galvanized steel sheets thickness 0.50mm (Standard), thicker sheets available (on request), Standard sheets color RAL 9010.

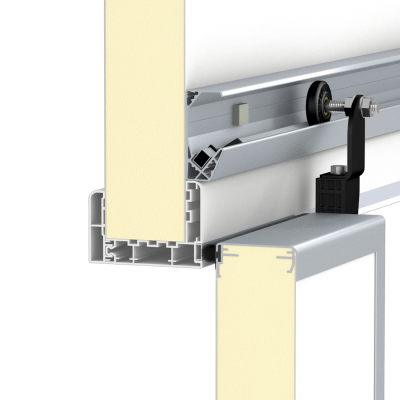

2. Sliding Hardware:

•  Brackets in reinforced composite material and zinc-coated metal.

• Two pulleys made of composite plastic materials.

• Fixed external handle in composite plastic material with stainless steel 304 tube.

1. Threshold Type:

Two types of threshold are available depend on door application and temperature of the room.

S1  without threshold, frame is only 3 parts (2 jambs + 1 transom) for positive temperature for rooms with or without floor.

S2 frame is only 3 parts and a special 40×40 mm thickness 4mm pre-painted steel angle is connected to the frame at the bottom and recessed into the concrete floor at 80mm, used for both positive for rooms without floor.

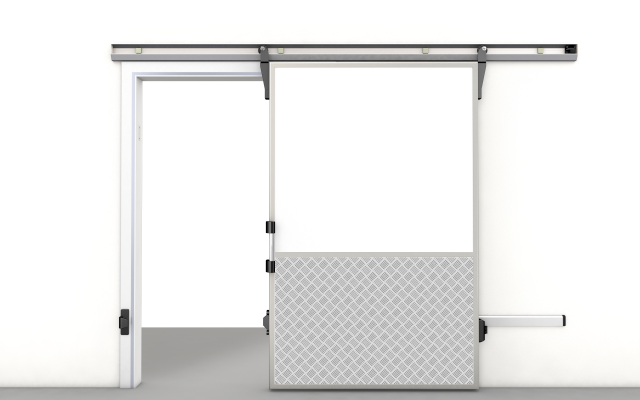

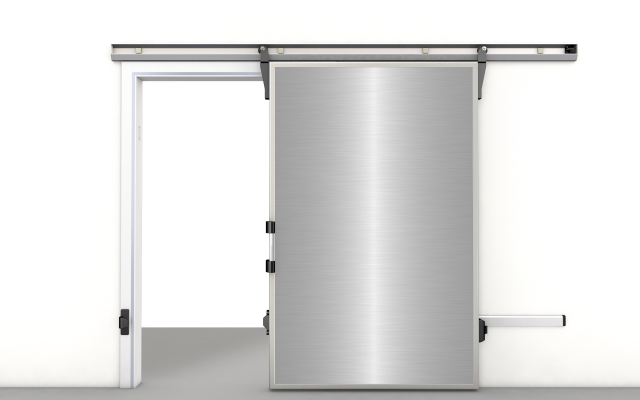

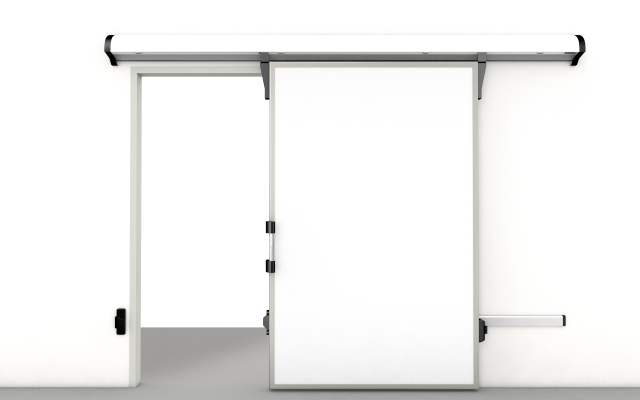

Sliding light Models:
